Layer separation

Paper Tier Sheet for Layer Separation on Pallets

Solid multi-ply kraft board from 1 to 3 mm. One product covers three positions in the load — between layers as a tier sheet, on the pallet deck as a pallet pad, and over the top of the stack as a pallet cap.

Request a quotation See the factory

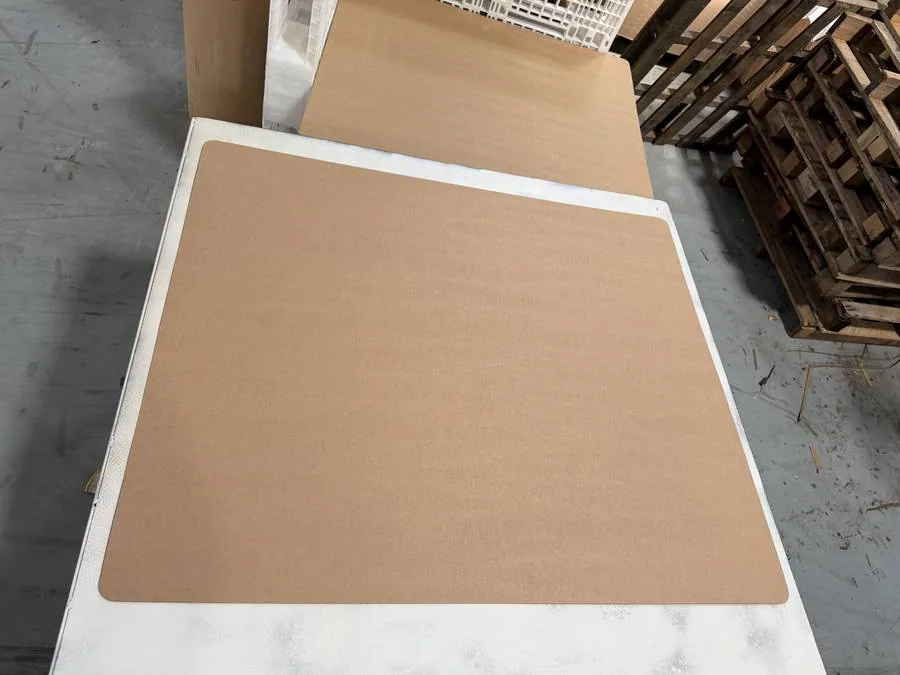

Paper Tier Sheet for Layer Separation on Pallets — Round-corner kraft tier sheets, cut to pallet footprint

Definition

A paper tier sheet is a solid multi-ply kraft board placed between product layers on a pallet, giving each layer a flat stable base and keeping the stack square during handling.

Applications

Where It Is Used

Canned and bottled goods

A flat tier between layers stops the upper cans resting on uneven caps below.

Bagged cargo

Gives each tier of sacks a level base so the stack builds square.

Fresh produce and cold chain

Separates layers and keeps ventilation channels aligned.

Glass and ceramics

Prevents point contact between layers of fragile goods.

Pallet deck pad

One sheet on the pallet deck stops nail heads and gaps marking the bottom layer.

Pallet cap

A sheet over the top of the stack shields the top layer from dust and handling damage.

Specification

Technical Specification

Open items are confirmed against your order specification before quotation. We do not publish estimated figures.

Item	Specification
Product type	Paper tier sheet / kraft layer pad
Product form	Solid laminated flat sheet, no lip
Material	Solid laminated kraft board
Thickness	1 – 3 mm
Sheet size	Customized — commonly cut to the pallet footprint
Corner style	Square or round corner
Compression strength	Confirmed against your load weight and stacking height
Position in load	Between layers, on the pallet deck, or as a top cap
MOQ	Confirmed according to specification and order requirements
Lead time	Confirmed with quotation
Audits & certifications	BSCI audit, ISO and FSC documentation are available according to the current certificate scope

Customization

What You Can Specify

Sheet length and width to your pallet footprint
Thickness within the 1–3 mm range
Square or round corners
Moisture-resistant surface treatment
Printing or marking
Bundle quantity per pack
Export packing method

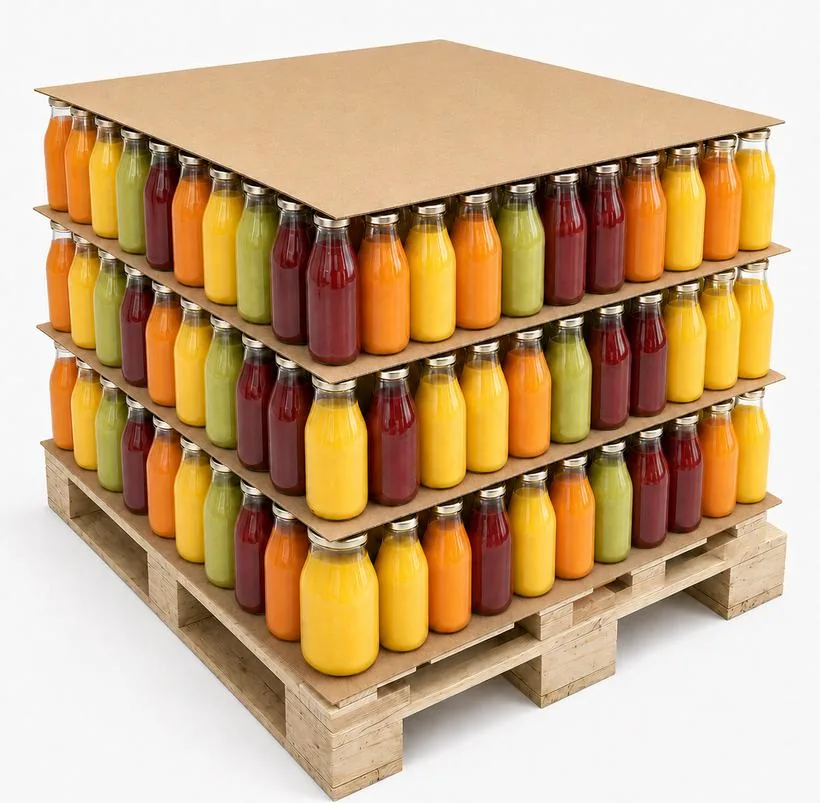

Tier sheets between product layers, on a pallet

Industries

Industries This Product Is Used In

Each industry page covers the cargo, the failure mode this product addresses, and the specification points that matter for that load.

Food & BeverageUneven layer tops from caps and rims Building & ConstructionLoad carried between heavy tiers Automotive & MachineryMixed parts boxes settling unevenly Appliances & ElectronicsLevel separation between boxed goods

See all industries.

Questions

Frequently Asked Questions

What is the difference between a tier sheet and a slip sheet?

A tier sheet is used with a pallet. It sits between product layers and has no gripper lip. A slip sheet replaces the pallet and has a gripper lip for a push-pull attachment. The two products are not interchangeable.

What does “one product, three uses” mean?

The same solid kraft board product can be used as a tier sheet, pallet pad or pallet cap. Final thickness and dimensions should be selected according to the position and load conditions.

Which thickness should I choose?

Thickness should be selected according to layer weight, pallet footprint, stacking pattern, product geometry and handling conditions. Available thickness: 1–3 mm.

Why round corners?

Round corners can help reduce snagging on equipment and stretch film during automated handling. Square corners remain available.

Can they be reused?

Tier sheets may be evaluated for reuse in controlled systems. Actual reuse depends on board condition, contamination, moisture exposure and handling. For export applications, end-of-life handling depends on local recycling facilities and material condition.

Do they replace corrugated layer pads?

Solid laminated kraft provides a thin, flat and non-corrugated layer-separation surface. Whether it should replace a corrugated layer pad depends on the required cushioning, rigidity and load configuration.

Send Your Cargo Details

Cargo dimensions, load weight, pallet size and handling equipment are enough for us to recommend a specification and quote from the factory.

Request a quotation
